MCE28 Economy casement
Sliding
Coming Soon
Performance
Comfort
Air tightness
-
Acoustics
-
Water tightness
-
Wind load resistance
-
Safety
Burglar resistance
* Note: Performances and properties may be different depending on the profile combinations
Properties
Max. dimensions & weight
Min. height of vent
500 mm
Min. width of vent
300 mm
Max. height of vent
2100 mm
Max. width of vent
700 mm
Max. weight of vent
60 kg

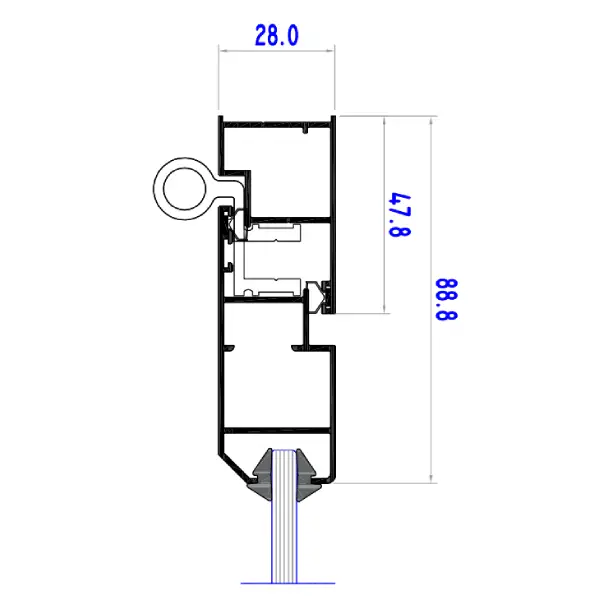

Sightlines
Min. frame width (outward opening)
48 mm
Min. vent width (outward opening)
41 mm
Min. frame-vent width (outward opening)
88 mm
Depth frame
28 mm
Depth vent
28 mm

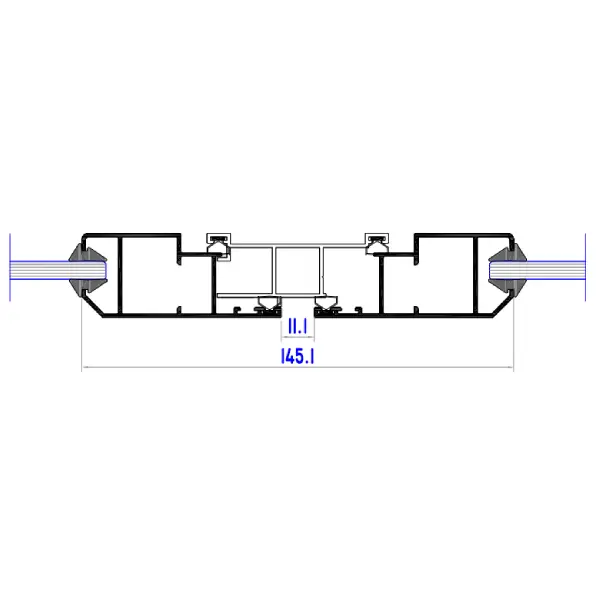

Min. width T-profile
61 mm
Glazing
Rebate height
12 mm
Min. glass thickness - vent
4 mm
Glazing method
Dry Glazing with EPDM or Natural Silicon
Max. glass thickness - vent
8 mm
