MSTH7O
Sliding
MAGS MSTH7O is a highly-insulated sliding system that combines elegance with performance and security. This unique sliding system is characterised profiles, allowing the integration of large windows and doors for maximum views, in combination with burglary resistance. The integrated innovative technologies guarantee ultimate performances with regard to wind and water tightness and thermal insulation, meeting with the highest standards. The sliding system MSTH70 offers you all design freedom to create contemporary living spaces, combining ultimate brightness with maximum comfort and security.
Technical details
Performance
Energy
Thermal insulation - Uw Double
0.28 Btu/hr.ft².°F
Thermal insulation - Uw
0.8 W/m²K
Thermal insulation - Uw Triple
0.21 Btu/hr.ft².°F
Uw Dependencies
Ug 0.6W/m²K, warm edge spacer, @4.50x2.30m, 36mm glass
Comfort
Air tightness
0.08 cfm/ft³
AMAA rating
Class CW
Water tightness
12 psf
PG rating
60
Air tightness
Class 4 (600Pa)
Acoustics STC
45 dB
Water tightness
Class E750 (750Pa)
Acoustics OITC
37 dB
Wind load resistance
Class C5 (2000Pa)
Acoustics - Rw(C;Ctr)
46(-1;-3) dB
Air tightness
1 (150 Pa)
Opening & closing resistance
Class 3
Water tightness
Class 9A (600Pa)
Safety
Burglar resistance
PAS 24
-
RC2
* Note: Performances and properties may be different depending on the profile combinations
Properties
Max. dimensions & weight
Min. height of vent
1800 mm
Max. width of vent
3500 mm
Max. height of vent
4000 mm
Max. weight of vent
750 kg
Min. width of vent
1000 mm
Max. weight of fixed part
1200 kg

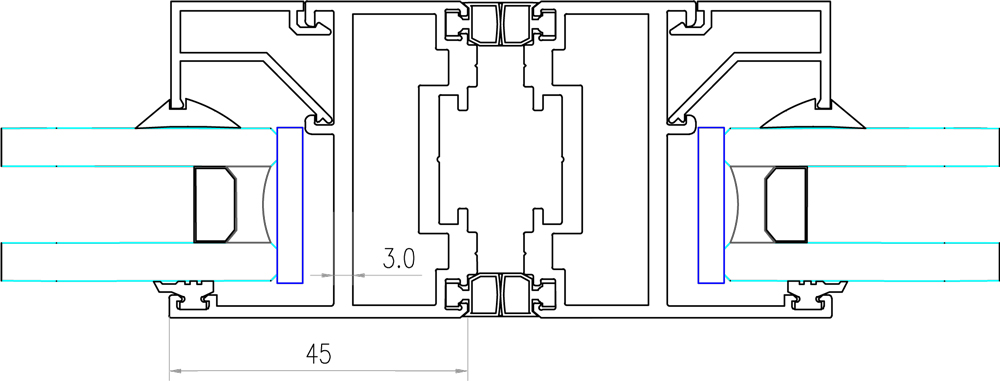

Sightlines
Min. width 4-pane
67 mm
AMAA rating
Class CW
Min. width meeting section
35 mm
PG rating
60
Min. width T-profile
35 mm
Acoustics STC
45 dB
Min. visible width (interior view)
8 mm
Acoustics OITC
37 dB
Min. visible width (exterior view)
8 mm
Acoustics - Rw(C;Ctr)
46(-1;-3) dB
Min. height treshold
0 mm
Glazing
Rebate height
17 mm
Min. glass thickness - vent
36 mm
Glazing method
Envelope glazing
-
Structural Glued Glazing
Max. glass thickness - vent
54 mm
