MAGS MCE28 Economy Casement System
MCE28 Economy casement system - Coming Soon. This economy casement system provides reliable outward opening functionality for residential applications. Designed for cost-effective solutions while maintaining quality performance standards. Features outward opening mechanism with standard glazing options suitable for basic window applications.
Performance
Comfort
Air tightness-
Acoustics-
Water tightness-
Wind load resistance-
Safety
Burglar resistance-
* Note: Performances and properties may be different depending on the profile combinations
Properties
Max. dimensions & weight
min height of vent500 mm
min width of vent300 mm
max height of vent2100 mm
max width of vent700 mm
max weight of vent60 kg

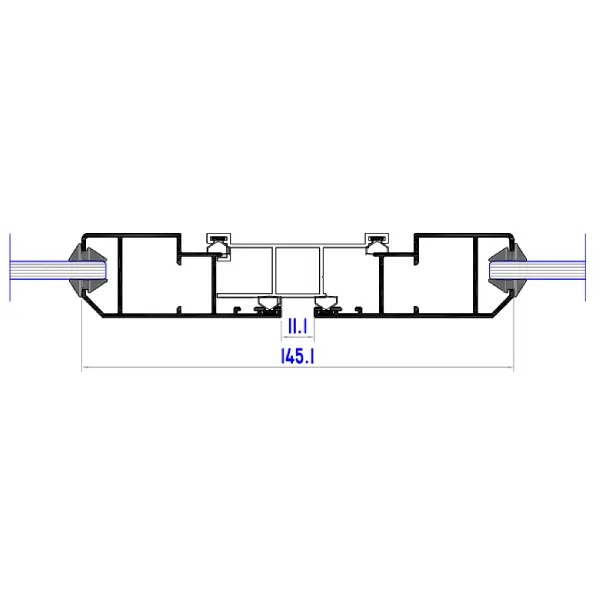

Sightlines
min frame width outward48 mm
min vent width outward41 mm
min frame vent width outward88 mm
depth frame28 mm
depth vent28 mm
min width t profile61 mm
Glazing
rebate height12 mm
min glass thickness4 mm
glazing methodDry Glazing with EPDM or Natural Silicon
max glass thickness8 mm
