MAGS CASEMENT SYSTEM 3in1 MCE92

MAGS CASEMENT SYSTEM 3in1 MCE92 is a non-insulated system for inward and outward opening windows and doors, designed according to the highest European quality standards. To guarantee superior quality and performance in every situation, the system has three gasket levels for inward and outward opening windows and doors. Through intelligent application, these multiple gaskets meet even the high air- and water tightness requirements of tropical regions. This simple, yet highly innovative design offers a very cost-efficient solution thanks to its optimised fabrication process. MCE92 can be realised with all types of inward and outward opening windows and doors, with security grill and mosquito net an extensive choice of accessories the perfect match of building concepts.

Need help?

Search and compare products

Get Started

Performance

Comfort

Air tightness-
Acoustics-
Water tightness-
Wind load resistance-

Safety

Burglar resistance-

* Note: Performances and properties may be different depending on the profile combinations

Properties

Max. dimensions & weight

min height of vent500 mm
min width of vent300 mm
max height of vent2100 mm
max width of vent700 mm
max weight of vent60 kg

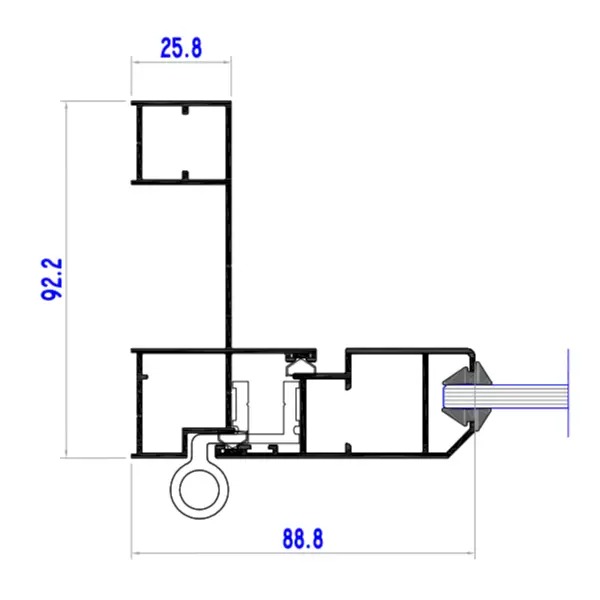

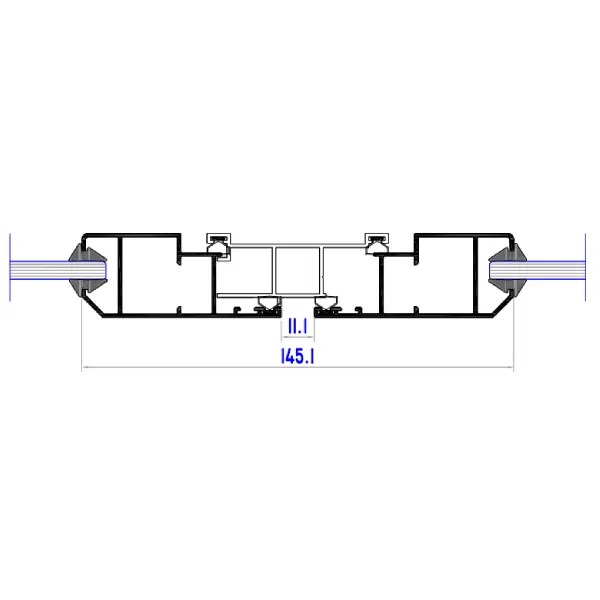

Sightlines

min frame width outward48 mm
min vent width outward41 mm
min frame vent width outward88 mm
depth frame92 mm
depth vent28 mm
min width t profile61 mm

Glazing

rebate height12 mm
min glass thickness4 mm
glazing methodDry Glazing with EPDM or Natural Silicon
max glass thickness8 mm
