MD45

Sliding

MAGS CASEMNET DOOR MD45 profiles and accessories for windows and doors and extensively tested in an optimized European test and approval program. The fireproofing time span is achieved by inducing a special cooling material into the profile chambers and by using self-adhesive and water- resistant swelling gaskets. These gaskets do not need to be sealed, reducing fabrication time of the profiles and saving costs. The MD45 fire proof range is available as outward opening single and double doors, panic doors, combined fixed window elements as well as glazed partition walls. This extensive range of configurations offers a huge range of options and combinations for architects to work with. Furthermore a large choice of accessories and locking devices is available.
Need help?

Search and compare products

Performance

Comfort
Air tightness
-
Acoustics
-
Water tightness
-
Wind load resistance
-
Safety
Burglar resistance
* Note: Performances and properties may be different depending on the profile combinations

Properties

Max. dimensions & weight
Min. height of vent
2100 mm
Min. width of vent
650 mm
Max. height of vent
3200 mm
Max. width of vent
1200 mm
Max. weight of vent
200 kg

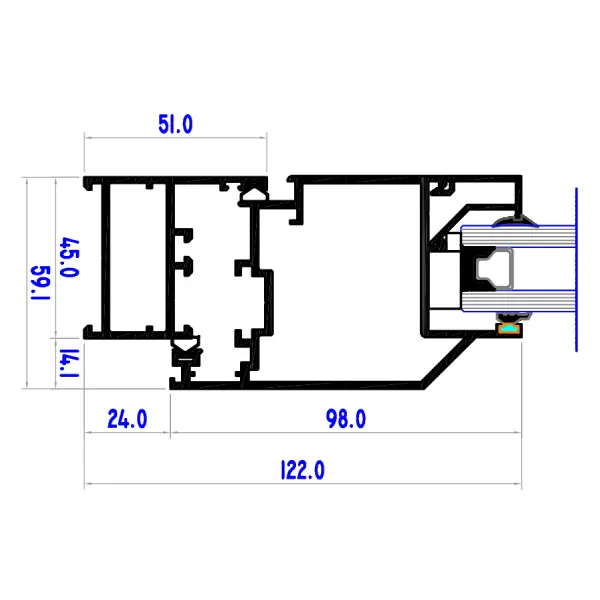

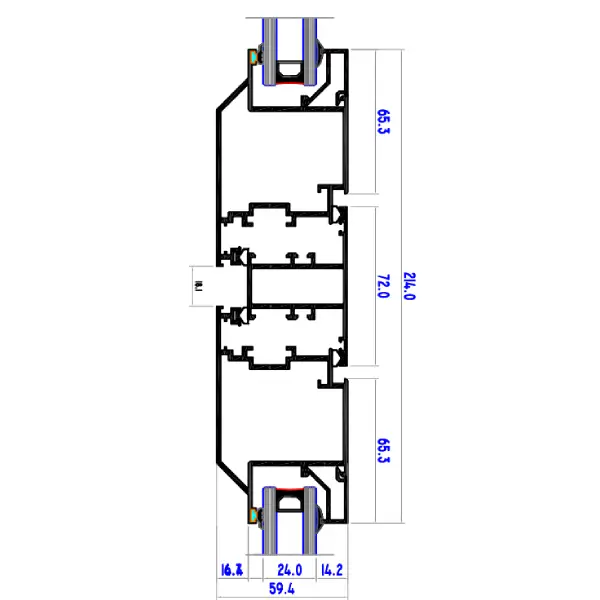

Sightlines
Min. frame width (outward opening)
45 mm
Min. vent width (outward opening)
60 mm
Min. frame-vent width (outward opening)
105 mm
Depth frame
45 mm, 105 mm
Depth vent
45 mm, 51 mm
Min. width T-profile
66 mm, 72 mm
Glazing
Rebate height
21 mm
Min. glass thickness - vent
5 mm
Glazing method
Dry Glazing with EPDM or Natural Silicon
Max. glass thickness - vent
35 mm
