MAGS CASEMENT DOOR MD45

MAGS CASEMENT DOOR MD45 profiles and accessories for windows and doors are extensively tested in an optimized European test and approval program. The fireproofing time span is achieved by inducing a special cooling material into the profile chambers and by using self-adhesive and water-resistant swelling gaskets. These gaskets do not need to be sealed, reducing fabrication time of the profiles and saving costs. The MD45 fire proof range is available as outward opening single and double doors, panic doors, combined fixed window elements as well as glazed partition walls. This extensive range of configurations offers a huge range of options and combinations for architects to work with. Furthermore a large choice of accessories and locking devices is available.

Need help?

Search and compare products

Get Started

Performance

Comfort

Air tightness-
Acoustics-
Water tightness-
Wind load resistance-

Safety

Burglar resistance-

* Note: Performances and properties may be different depending on the profile combinations

Properties

Max. dimensions & weight

min height of vent2100 mm
min width of vent650 mm
max height of vent3200 mm
max width of vent1200 mm
max weight of vent200 kg

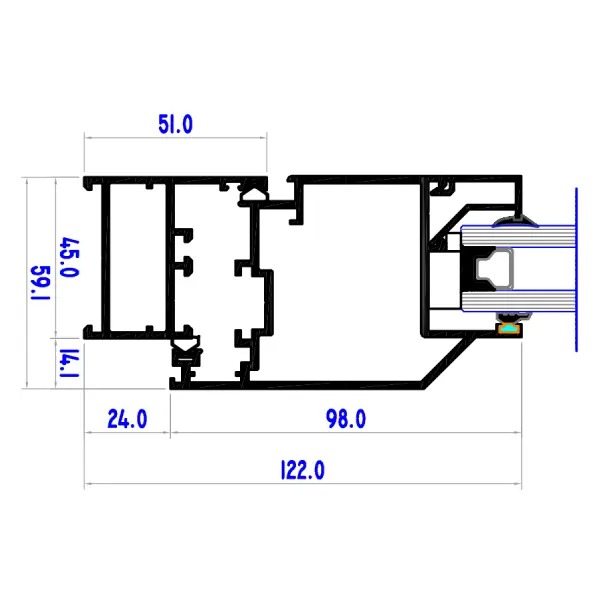

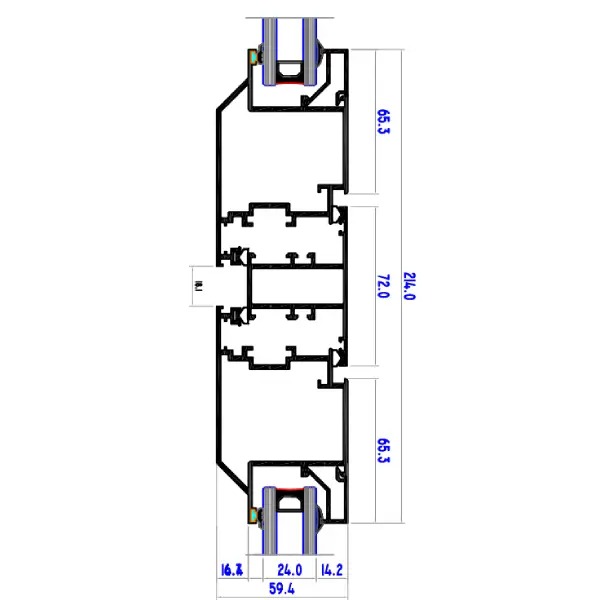

Sightlines

min frame width outward45 mm
min vent width outward60 mm
min frame vent width outward105 mm
depth frame45 mm, 105 mm
depth vent45 mm, 51 mm
min width t profile66 mm, 72 mm

Glazing

rebate height21 mm
min glass thickness5 mm
glazing methodDry Glazing with EPDM or Natural Silicon
max glass thickness35 mm
