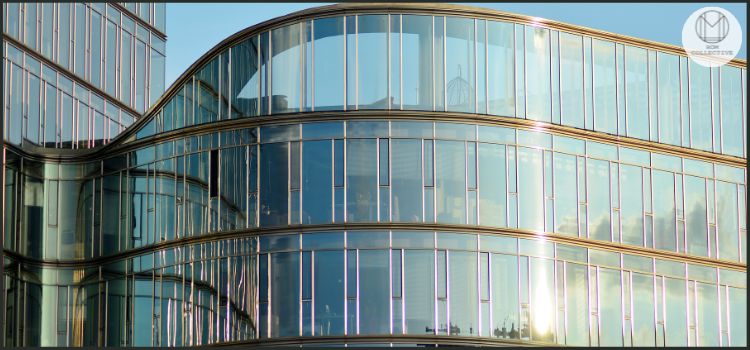

MCW38 - Image 1

MAGS MCW38 Curtain Wall System

MAGS MCW38 is a versatile curtain wall system designed for modern architectural applications. This system combines aesthetic appeal with outstanding performance characteristics, offering excellent thermal insulation, weather resistance, and structural integrity. The MCW38 system allows for maximum transparency while maintaining energy efficiency, making it ideal for commercial and residential projects where both form and function are paramount. With its flexible design options and robust construction, MCW38 provides architects and designers with the freedom to create striking building envelopes that meet the highest standards of performance and sustainability.

Performance

Comfort

Air tightnessClass 4 (EN 12207)
AcousticsRw up to 42 dB
Water tightnessClass E1200 (EN 12208)
Wind load resistanceClass C5 (EN 12210)

Safety

Burglar resistanceRC2 - RC3

* Note: Performances and properties may be different depending on the profile combinations

Properties

Max. dimensions & weight

max panel height4200 mm
max panel width3000 mm
max panel weight500 kg
mullion spacingUp to 1500 mm

Glazing

min glass thickness6 mm
max glass thickness60 mm
max glass weight500 kg
