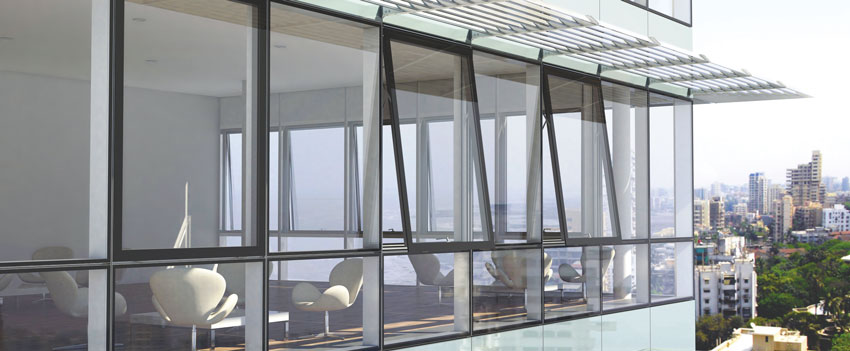

MAGS MSU55 Unitized Facade System
MAGS MSU55 is an innovative unitized facade system designed for efficient installation and superior performance. This system is prefabricated in controlled factory conditions, ensuring high quality and precision while reducing on-site installation time. The MSU55 system offers excellent thermal insulation, weather resistance, and structural integrity, making it ideal for projects with tight schedules and high performance requirements. With its modular design and versatile configuration options, MSU55 provides architects with the flexibility to create distinctive building envelopes while maintaining construction efficiency.
Performance
Comfort
Air tightnessClass 4 (EN 12207)
AcousticsRw up to 43 dB
Water tightnessClass E1350 (EN 12208)
Wind load resistanceClass C5 (EN 12210)
Safety
Burglar resistanceRC2 - RC3
* Note: Performances and properties may be different depending on the profile combinations
Properties
Max. dimensions & weight
max panel height4500 mm
max panel width3000 mm
max panel weight600 kg
mullion spacingUp to 1800 mm
Glazing
min glass thickness6 mm
max glass thickness70 mm
max glass weight600 kg
