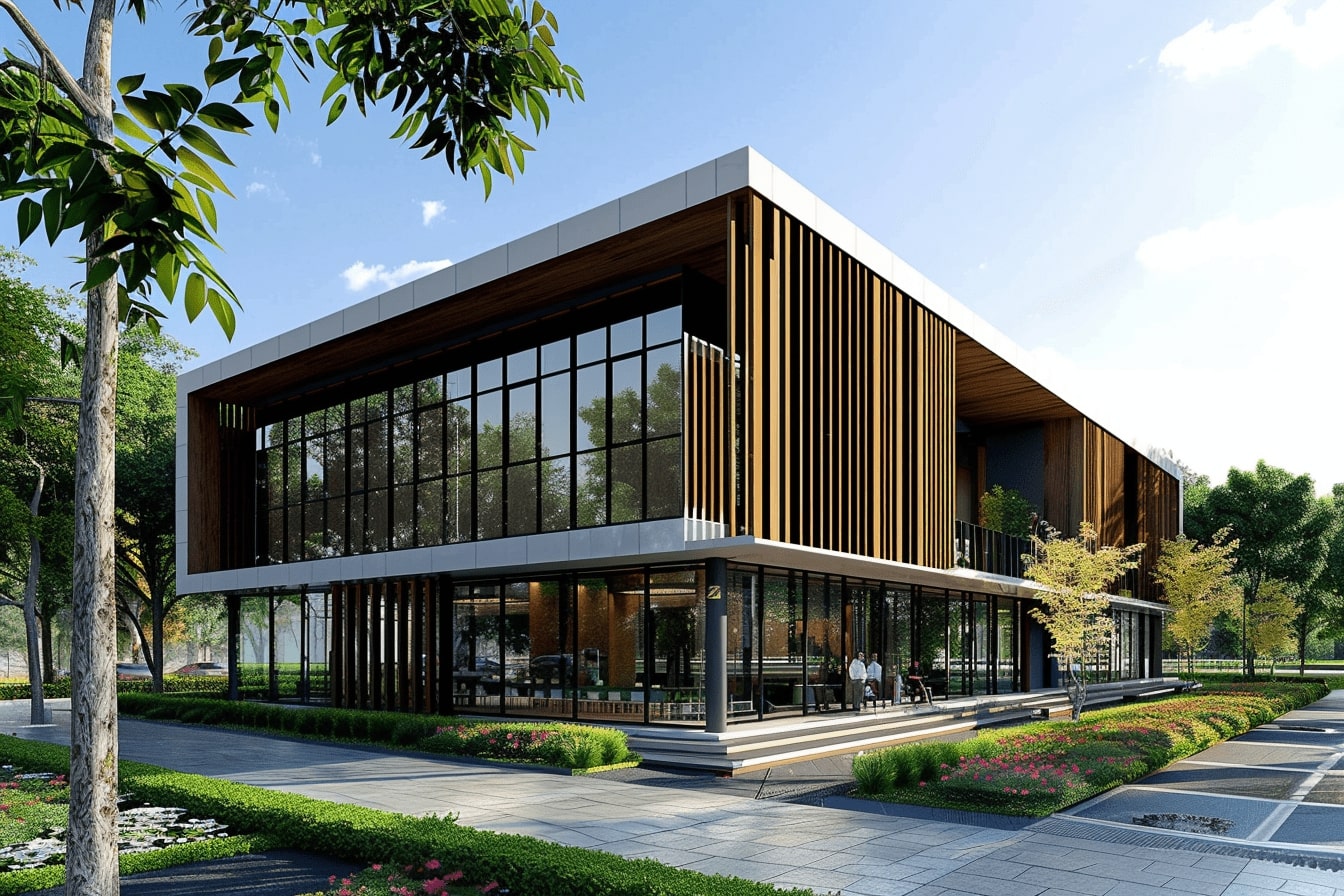

MSU67 - Image 1

MAGS MSU67 Advanced Unitized Facade System

MAGS MSU67 is an advanced unitized facade system that combines cutting-edge technology with exceptional performance. This system features enhanced thermal insulation properties and innovative design elements that enable the creation of highly energy-efficient building envelopes. The MSU67 system is prefabricated under controlled conditions, ensuring precision and quality while significantly reducing on-site installation time. With its superior performance characteristics and versatile design options, MSU67 is the ideal choice for projects requiring the highest standards of energy efficiency, comfort, and architectural expression.

Performance

Comfort

Air tightnessClass 4 (EN 12207)
AcousticsRw up to 47 dB
Water tightnessClass E1500 (EN 12208)
Wind load resistanceClass C5/B5 (EN 12210)

Safety

Burglar resistanceRC3

* Note: Performances and properties may be different depending on the profile combinations

Properties

Max. dimensions & weight

max panel height5000 mm
max panel width3200 mm
max panel weight700 kg
mullion spacingUp to 2000 mm

Glazing

min glass thickness8 mm
max glass thickness80 mm
max glass weight700 kg
