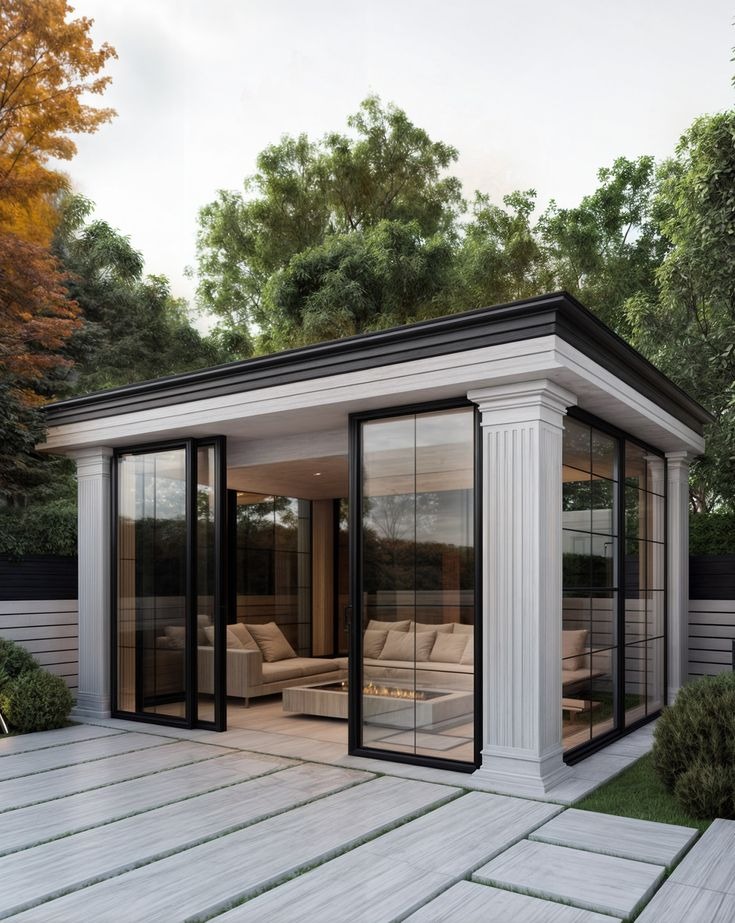

MAGS MSFD58 Premium Folding Door
MAGS MSFD58 Premium Folding Door features anti-pinch design with enhanced noise reduction and multiple opening options. This premium folding system can be designed as one-piece or thermal break configuration to meet specific project requirements. The system offers superior performance with advanced safety features and acoustic properties, making it ideal for high-end residential and commercial applications where both functionality and comfort are paramount.
Performance
Comfort
Air tightness-
Acoustics-
Water tightness-
Wind load resistance-
Safety
Burglar resistance-
* Note: Performances and properties may be different depending on the profile combinations
Properties
Max. dimensions & weight
min height of vent600 mm
min width of vent400 mm
max height of vent3600 mm
max width of vent1200 mm
max weight of vent120 kg
Sightlines
min width meeting section106 mm
min width t profile58 mm
min height threshold15 mm
depth frame67 mm
depth vent58 mm
depth frame vent67 mm
Glazing
rebate height21 mm
min glass thickness5 mm
glazing methodDry Glazing with EPDM or Natural Silicon
max glass thickness35 mm
