MSE63
Sliding
MAGS Economy Sliding MSE63 is a non-insulated sliding system offering a wide range of solutions ideal for applications in warm climates, winter gardens or the partitioning of indoor office spaces. MSE63 applies the latest techniques, designed according to the highest European quality standards. This sliding system offers a complete range of opening possibilities, from sliding elements in the wall to 2- and 3-solutions. MSE63 realises an aesthetic solution for your building. In addition, the sliding elements can easily be integrated with different types of windows, conservatory systems, sunscreens, and screen doors.
Performance
Comfort
Air tightness
-
Acoustics
-
Water tightness
-
Wind load resistance
-
Safety
Burglar resistance
* Note: Performances and properties may be different depending on the profile combinations
Properties
Max. dimensions & weight
Min. height of vent
600 mm
Min. width of vent
450 mm
Max. height of vent
2100 mm
Max. width of vent
1500 mm
Max. weight of vent
100 kg

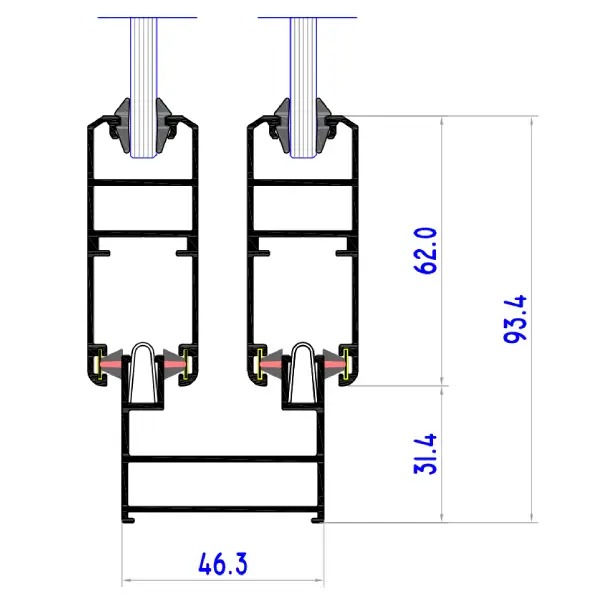

Sightlines
Frame Height
38 mm
Visible Vent Width
63 mm
Visible Meeting Section
131 mm
Vent System Depth
65 mm
Depth frame 2-rail
46 mm, 67 mm
Depth frame 3-rail
83 mm, 104 mm

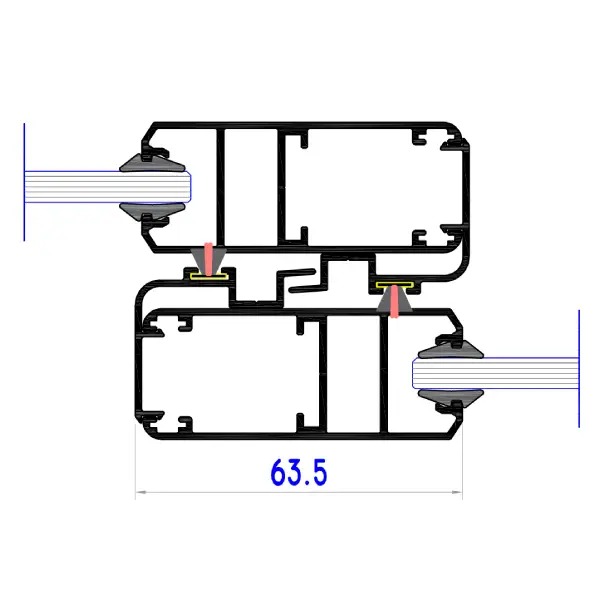

Interlocking View
65 mm
Glazing
Rebate height
15 mm
Min. glass thickness - vent
4 mm
Glazing method
Dry Glazing with EPDM or Natural Silicon
Max. glass thickness - vent
8 mm
