MAGS ULTRA SLIM MS16

MAGS ULTRA SLIM MS16 is a high insulated sliding system with slim profiles and a concealed frame that combines comfort with elegance. Thanks to the ultra slim design, this sliding window allows for maximum natural light and provides an optimal panoramic view. The integrated innovative technologies guarantee ultimate performances with regard to wind and water tightness and thermal insulation, meeting with the highest standards. The sliding system MS16 offers you all the design freedom to create contemporary living spaces, combining ultimate brightness with maximum comfort. This sliding system provides a wide range of opening possibilities, from elements that slide over 2- and 3-rail solutions, allowing you to open up to 6 leaves, over a very slim central closing option of only 42 mm wide.

Need help?

Search and compare products

Get Started

Performance

Comfort

Air tightness-
Acoustics-
Water tightness-
Wind load resistance-

Safety

Burglar resistance-

* Note: Performances and properties may be different depending on the profile combinations

Properties

Max. dimensions & weight

min height of vent1000 mm
min width of vent800 mm
max height of vent3600 mm
max width of vent3000 mm
max weight of vent300 kg

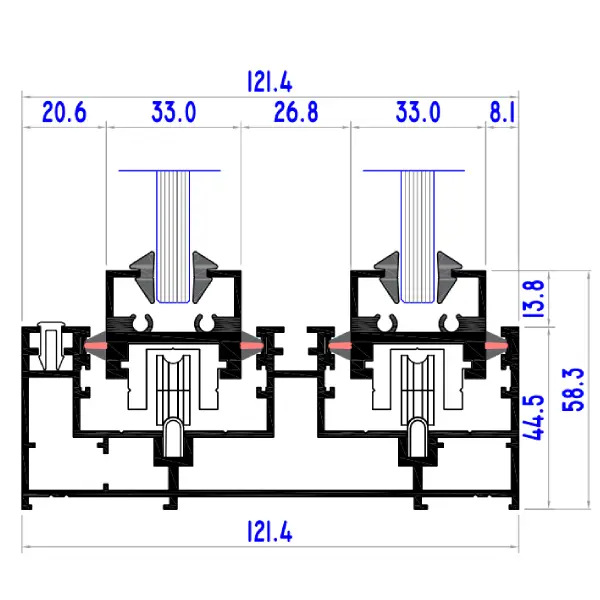

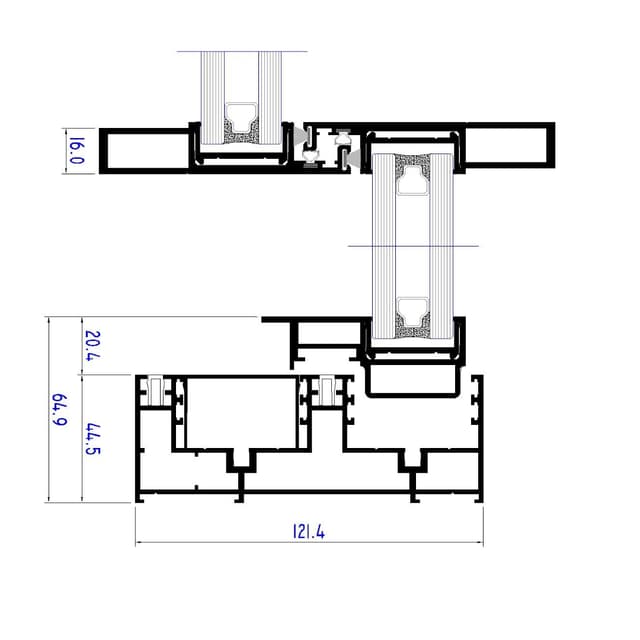

Sightlines

frame height45 mm
visible vent width20 mm
vent system depth36 mm
interlocking view16 mm
visible meeting section52 mm
depth frame2 rail121 mm
depth frame3 rail181 mm

Glazing

rebate height17 mm
min glass thickness5 mm
glazing methodDry Glazing with EPDM or Natural Silicon
max glass thickness24 mm
