MS18 PANORAMIC
Sliding

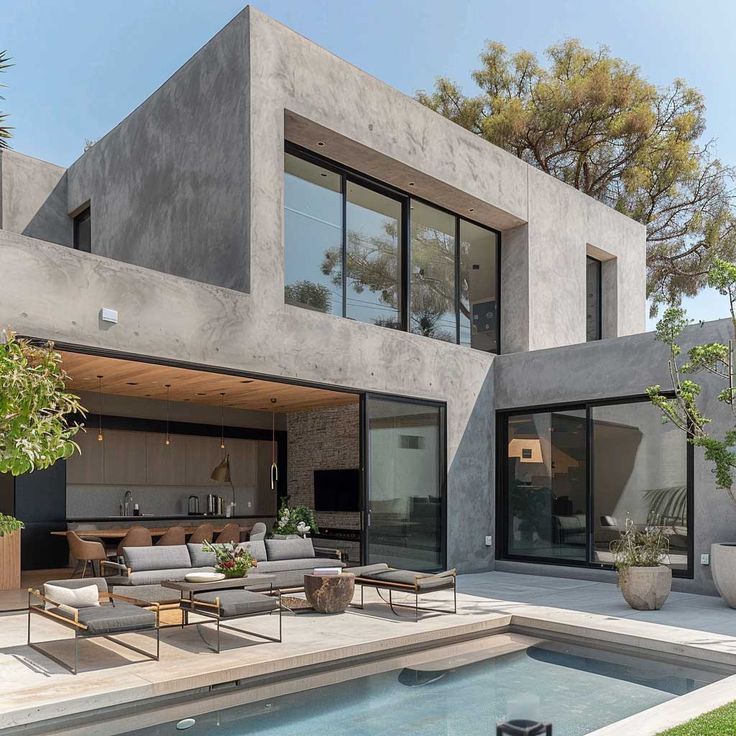

MAGS PREMIUM SLIM SLIDING SYSTEM MS18 Enjoy view with ultimate performances! The ultra-slim design of the MS18 sliding door creates large transparent surfaces with a light, sleek, and elegant appearance.
This fully transparent and accessible sliding door seamlessly extends the house’s interior to the outside. Despite the minimal visual sidelines, the system’s high strength allows MS18 to carry the weight of a large sliding glass pane up to 300 kilograms. Fixed panels up to 600 kg. This, in combination with the high energy performance and the minimalistic look, makes this product the best solution architecture.
Performance
Comfort
Air tightness
-
Acoustics
-
Water tightness
-
Wind load resistance
-
Safety
Burglar resistance
* Note: Performances and properties may be different depending on the profile combinations
Properties
Max. dimensions & weight
Min. height of vent
2100 mm
Min. width of vent
1500 mm
Max. height of vent
4500 mm
Max. width of vent
3000 mm
Max. weight of vent
600 kg
Sightlines
Frame Height
71 mm
Visible Vent Width
32 mm
Vent System Depth
42 mm
Interlocking View
18 mm
Visible Meeting Section
71 mm, 42 mm
Depth frame 2-rail
110 mm
Depth frame 3-rail
165 mm
Glazing
Rebate height
15 mm
Min. glass thickness - vent
5 mm
Glazing method
Dry Glazing with EPDM or Natural Silicon
Max. glass thickness - vent
30 mm
