MAGS PREMIUM MINIMAL PANORAMIC SLIDING SYSTEM MS22
MAGS PREMIUM MINIMAL PANORAMIC SLIDING SYSTEM MS22 Enjoy ultimate performance! The minimalist panoramic design of the MS22 sliding door creates large transparent surfaces with a light, sleek, and elegant appearance. This fully transparent and accessible sliding door seamlessly extends the house's interior to the outside. Despite the minimal visual sidelines, the system's high strength allows MS22 to carry the weight of a large sliding glass pane of up to 300 kilograms. Fixed panels up to 600 kg. This in combination with the high energy performance and the minimalistic look makes this product the best solution architecture.
Performance
Comfort
Air tightness-
Acoustics-
Water tightness-
Wind load resistance-
Safety
Burglar resistance-
* Note: Performances and properties may be different depending on the profile combinations
Properties
Max. dimensions & weight
min height of vent1000 mm
min width of vent1000 mm
max height of vent3200 mm
max width of vent2400 mm
max weight of vent300 kg

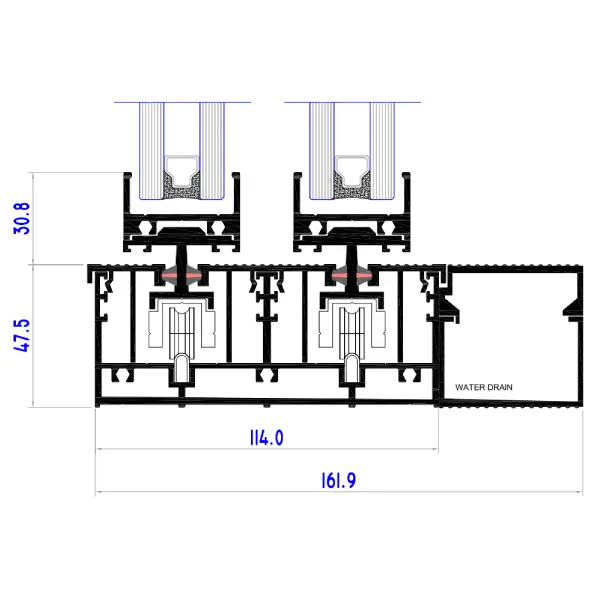

Sightlines
frame height48 mm
visible vent width29 mm
vent system depth42 mm
interlocking view22 mm
visible meeting section81 mm, 42 mm
depth frame2 rail114 mm
depth frame3 rail170 mm
Glazing
rebate height15 mm
min glass thickness5 mm
glazing methodDry Glazing with EPDM or Natural Silicon
max glass thickness34 mm
