MAGS Slim Heavy-Duty Lift and Slide MS30
MS30 Slim Heavy-Duty lift and Slide system provides lifting sliding for better seating performance. Positioned at will, easy to adjust the ventilation area. Offers sound and heat insulation, making it energy efficient. This advanced system combines the convenience of sliding doors with the sealing performance of lift-and-slide technology, providing superior thermal and acoustic insulation.
Performance
Comfort
Air tightness-
Acoustics-
Water tightness-
Wind load resistance-
Safety
Burglar resistance-
* Note: Performances and properties may be different depending on the profile combinations
Properties
Max. dimensions & weight
min height of vent2100 mm
min width of vent1500 mm
max height of vent3500 mm
max width of vent3600 mm
max weight of vent300 kg, 400 kg, 600 kg

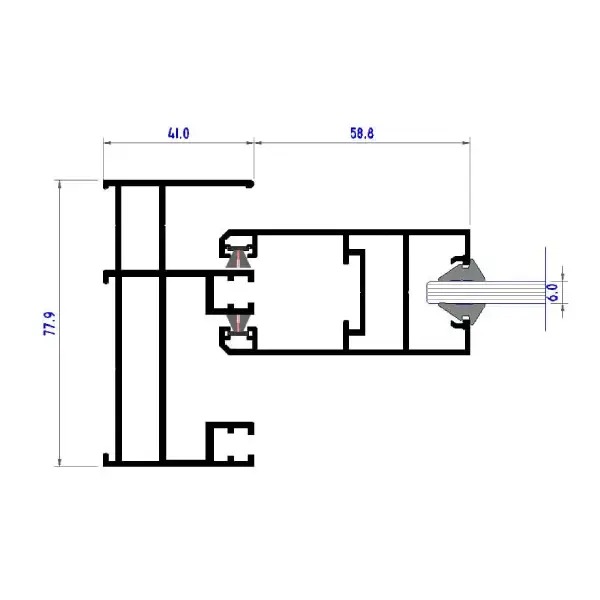

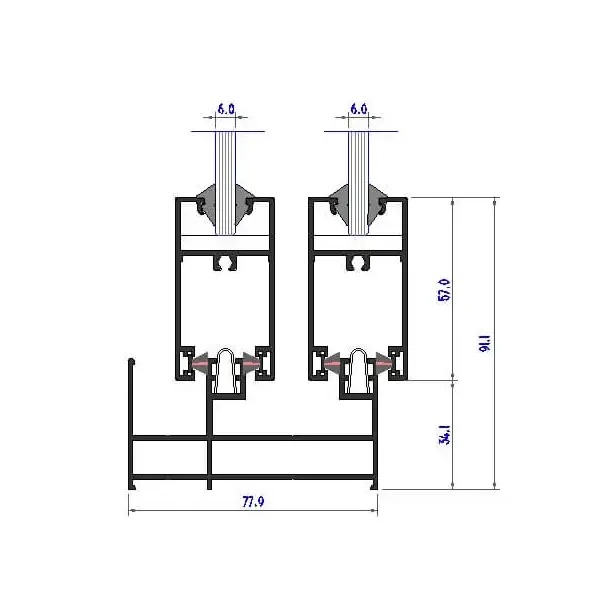

Sightlines
frame height45 mm
visible vent width75 mm
vent system depth53 mm
visible meeting section160 mm
depth frame2 rail131 mm
interlocking view30 mm
Glazing
rebate height20 mm
min glass thickness5 mm
glazing methodDry Glazing with EPDM or Natural Silicon
max glass thickness45 mm
