MS40 MONORAIL

Sliding

MAGS Sliding MS40 is a non-insulated sliding system offering a wide range of solutions ideal for applications in warm climates, winter gardens, or the partitioning of indoor office spaces. MS40 applies the latest techniques, designed according to the highest European quality standards. This sliding system offers a complete range of opening possibilities, from sliding elements in the wall solutions. With its minimalistic design, MS40 realises an aesthetic solution for your building. In addition, the sliding elements can easily be integrated with different types of windows, conservatory systems, sun screenings and screen doors.

Need help?

Search and compare products

Performance

Comfort
Air tightness
-
Acoustics
-
Water tightness
-
Wind load resistance
-
Safety
Burglar resistance
* Note: Performances and properties may be different depending on the profile combinations

Properties

Max. dimensions & weight
Min. height of vent
600 mm
Min. width of vent
450 mm
Max. height of vent
3000 mm
Max. width of vent
2400 mm
Max. weight of vent
200 kg

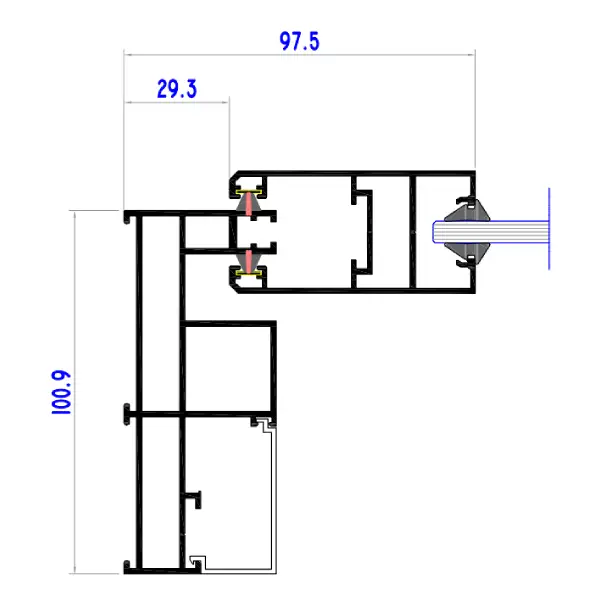

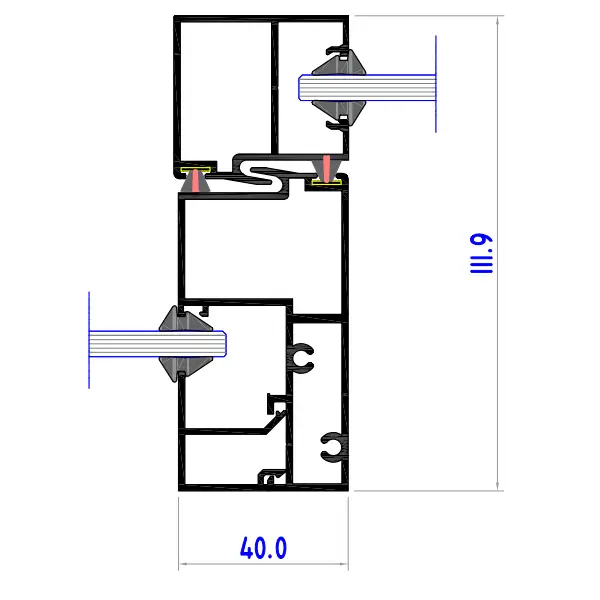

Sightlines
Frame Height
41 mm
Visible Vent Width
68 mm
Visible Meeting Section
140 mm, 51 mm
Vent System Depth
34 mm
Interlocking View
40 mm
Depth Monorail
101 mm
Glazing
Rebate height
17 mm
Min. glass thickness - vent
5 mm
Glazing method
Dry Glazing with EPDM or Natural Silicon
Max. glass thickness - vent
24 mm
