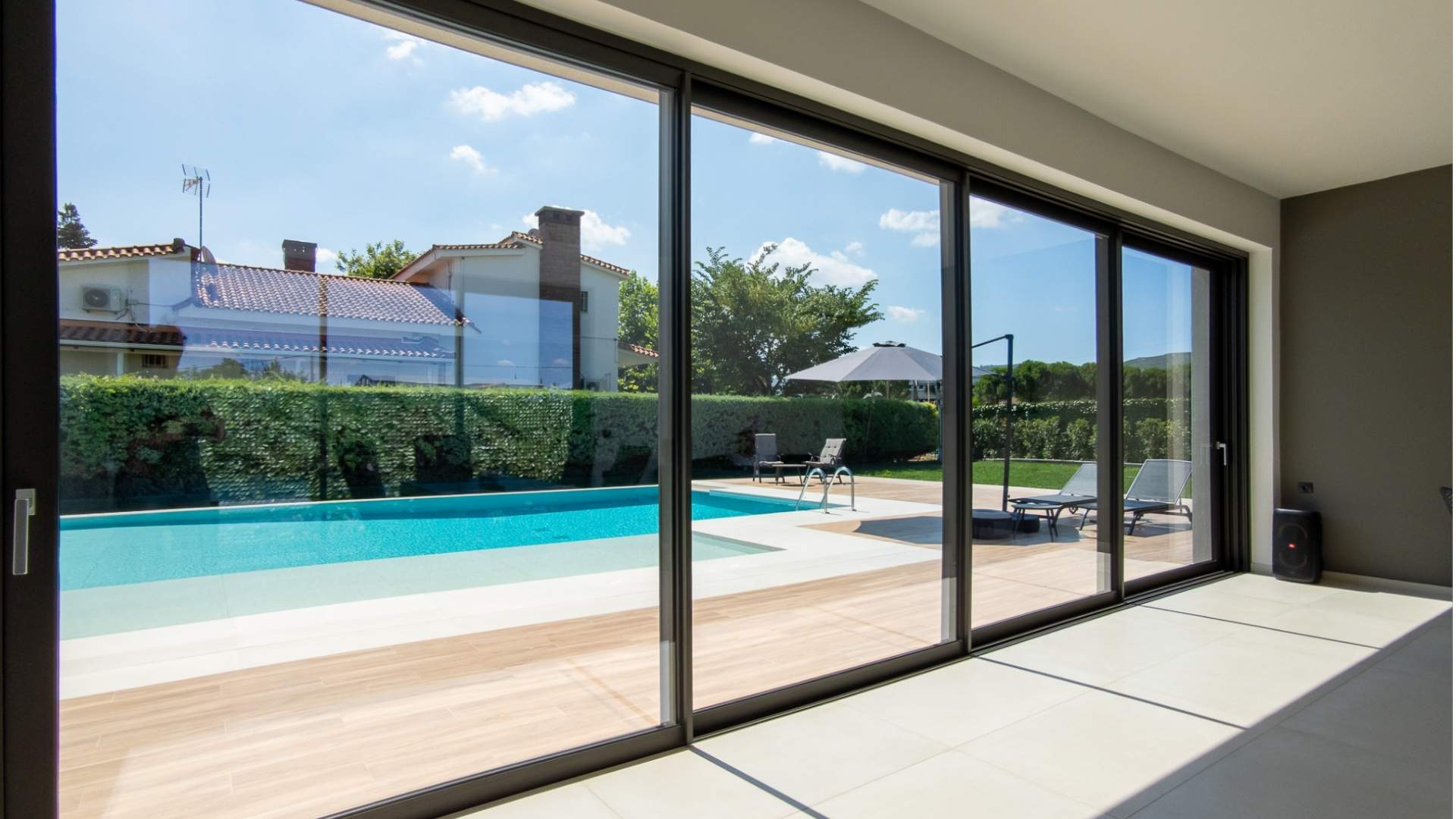

MS11 - Image 1

MAGS LA VISTA SLIDING SYSTEM MS11

MAGS LA VISTA SLIDING SYSTEM MS11 Enjoy view with ultimate performances! The ultra-slim design of the MS11 sliding door creates large transparent surfaces, with a light, sleek and elegant appearance. This fully transparent and accessible sliding door seamlessly extends the house's interior to the outside. Despite the minimal visual sidelines, the systems high strength allows MS11 to carry the weight of a large sliding glass pane up to 300 kilograms. Fixed panels up to 600 kg. This in combination with the high energy performance and the minimalistic look makes this product the best solution architecture. Available in bottom SS track and aluminum track system.

Need help?

Search and compare products

Get Started

Performance

Comfort

Air tightness-
Acoustics-
Water tightness-
Wind load resistance-

Safety

Burglar resistance-

* Note: Performances and properties may be different depending on the profile combinations

Properties

Max. dimensions & weight

min height of vent600 mm
min width of vent650 mm
max height of vent3600 mm
max width of vent3000 mm
max weight of vent300 kg

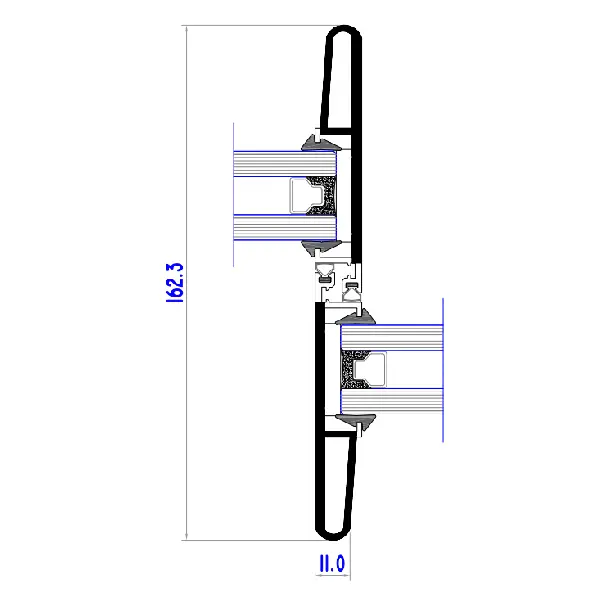

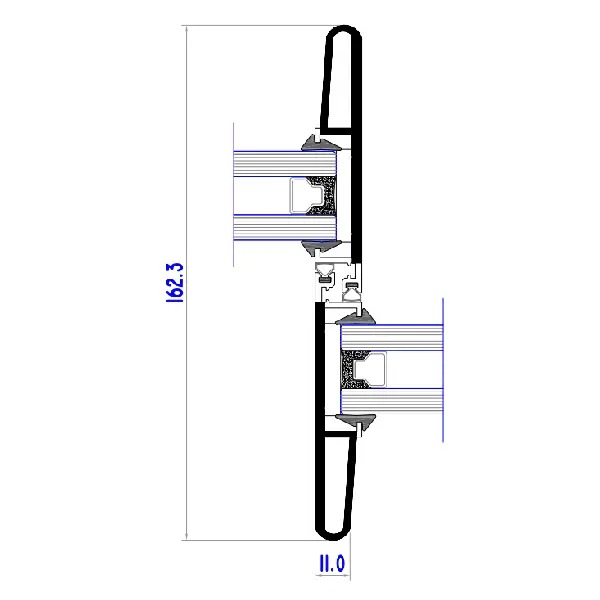

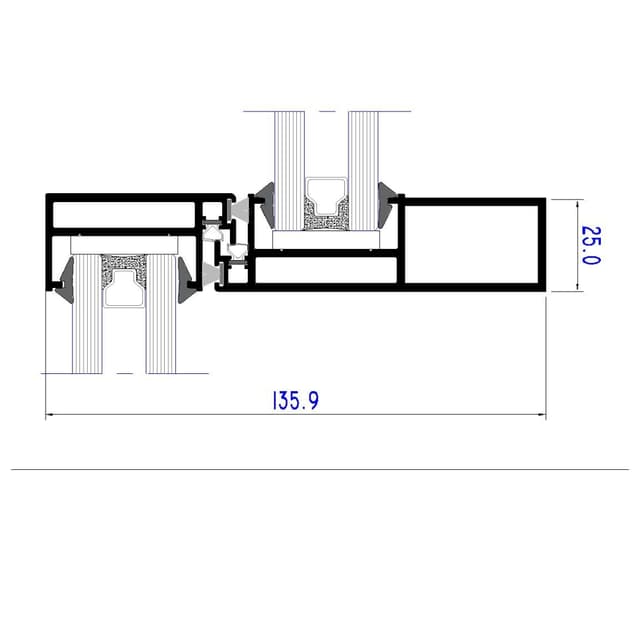

Sightlines

frame height31 mm
visible vent width45 mm
visible meeting section81 mm, 42 mm
vent system depth42 mm
interlocking view11 mm
depth frame2 rail110 mm
depth frame3 rail165 mm

Glazing

rebate height15 mm
min glass thickness5 mm
glazing methodDry Glazing with EPDM or Natural Silicon
max glass thickness30 mm
