MAGS PREMIUM SLIM SLIDING SYSTEM MS18

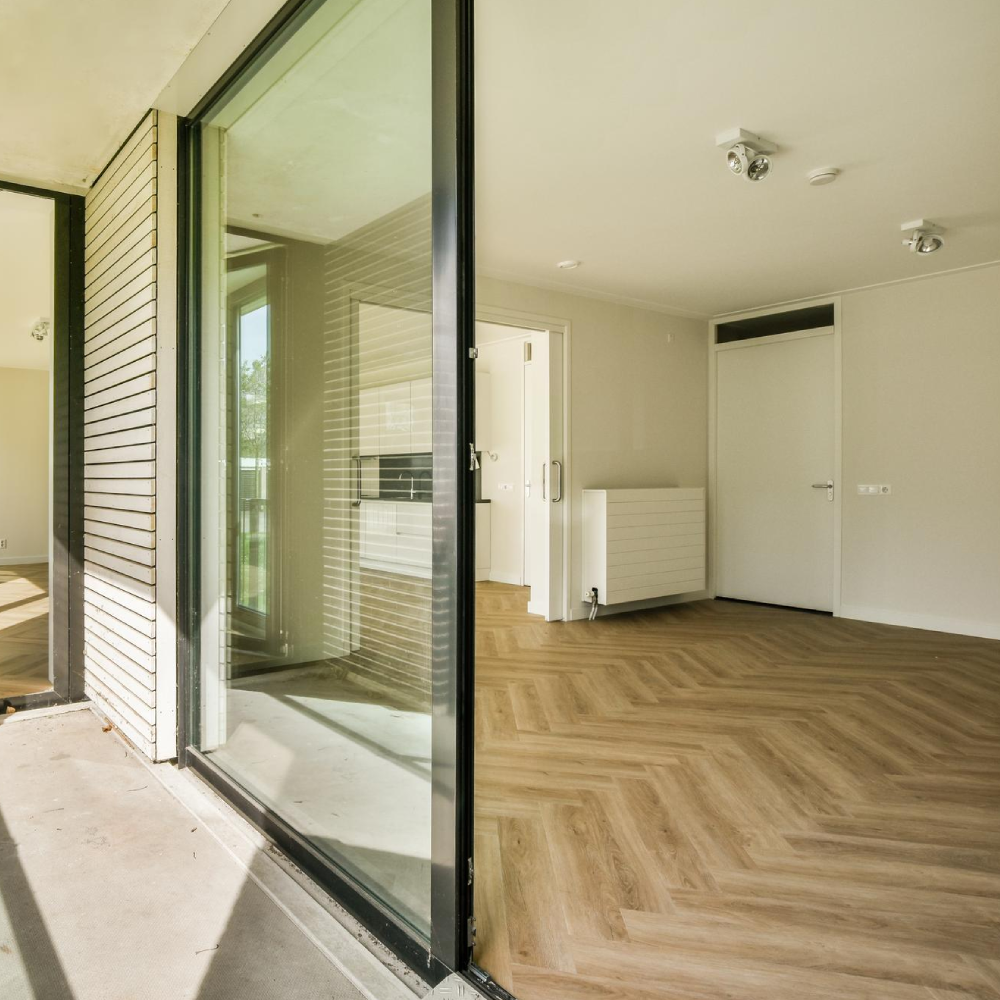

MAGS PREMIUM SLIM SLIDING SYSTEM MS18 Enjoy view with ultimate performances! The ultra-slim design of the MS18 sliding door creates large transparent surfaces, with a light, sleek and elegant appearance. This fully transparent and accessible sliding door seamlessly extends the house's interior to the outside. Despite the minimal visual sidelines, the systems high strength allows MS18 to carry the weight of a large sliding glass pane up to 300 kilograms. Fixed panels up to 600 kg. This in combination with the high energy performance and the minimalistic look makes this product the best solution architecture.
Performance
Comfort
Air tightness-
Acoustics-
Water tightness-
Wind load resistance-
Safety
Burglar resistance-
* Note: Performances and properties may be different depending on the profile combinations
Properties
Max. dimensions & weight
min height of vent600 mm
min width of vent650 mm
max height of vent4500 mm
max width of vent3000 mm
max weight of vent500 kg

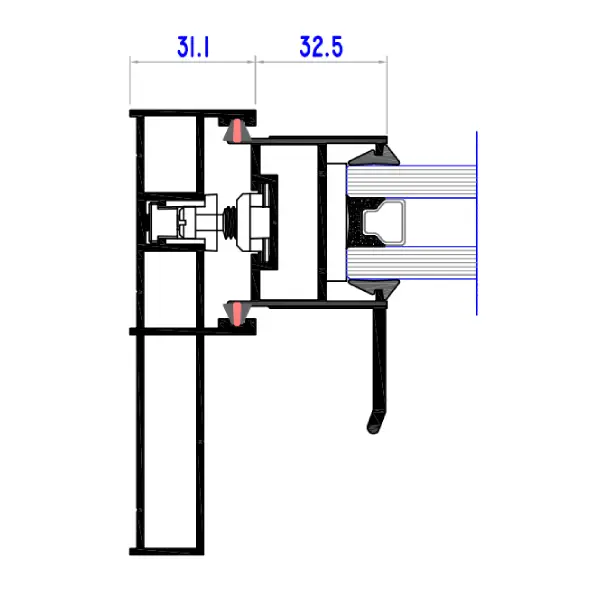

Sightlines
frame height31 mm
visible vent width45 mm

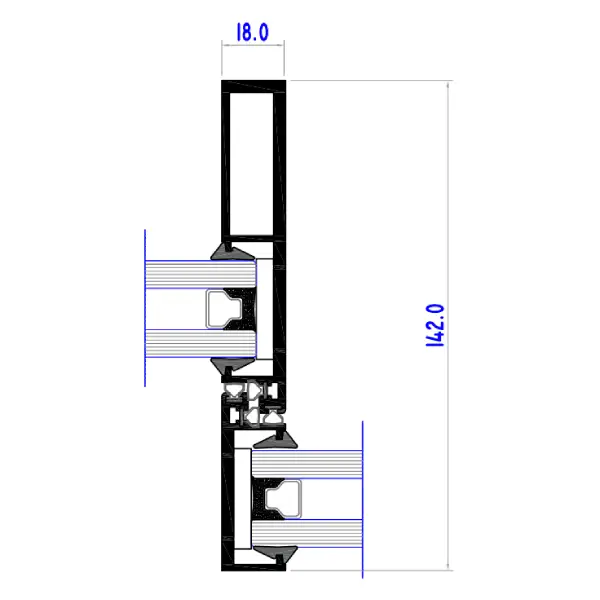

visible meeting section81 mm, 42 mm
vent system depth42 mm
interlocking view18 mm
depth frame2 rail110 mm
depth frame3 rail165 mm
Glazing
rebate height15 mm
min glass thickness5 mm
glazing methodDry Glazing with EPDM or Natural Silicon
max glass thickness30 mm
