MS22 MINIMAL
Sliding
MAGS PREMIUM MINIMAL SLIDING SYSTEM MS22 Enjoy ultimate performance! The minimalist panoramic design of the MS22 sliding door creates large transparent surfaces with a light, sleek, and elegant appearance. This fully transparent and accessible sliding door seamlessly extends the house’s interior to the outside. Despite the minimal visual sidelines, the system’s high strength allows MS22 to carry the weight of a large sliding glass pane of up to 300 kilograms. Fixed panels up to 600 kg. This in combination with the high energy performance and the minimalistic look makes this product the best solution architecture.
Performance
Comfort
Air tightness
-
Acoustics
-
Water tightness
-
Wind load resistance
-
Safety
Burglar resistance
* Note: Performances and properties may be different depending on the profile combinations
Properties
Max. dimensions & weight
Min. height of vent
1000 mm
Min. width of vent
1000 mm
Max. height of vent
3200 mm
Max. width of vent
2400 mm
Max. weight of vent
300 kg
Sightlines
Frame Height
48 mm
Visible Vent Width
29 mm
Vent System Depth
42 mm

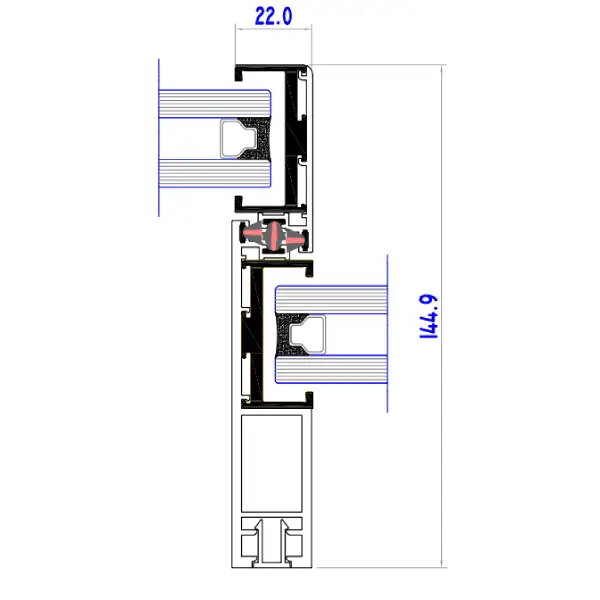

Interlocking View
22 mm
Visible Meeting Section
81 mm, 42 mm

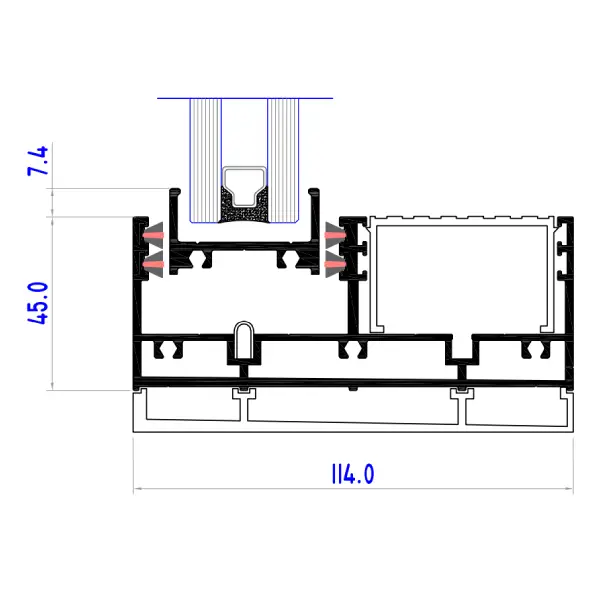

Depth frame 2-rail
114 mm
Depth frame 3-rail
170 mm
Glazing
Rebate height
15 mm
Min. glass thickness - vent
5 mm
Glazing method
Dry Glazing with EPDM or Natural Silicon
Max. glass thickness - vent
34 mm
