MSTH75 Sliding

Sliding

MAGS MSTH75 is a highly-insulated sliding system that combines elegance with performance and security. This unique sliding system is characterised profiles, allowing the integration of large windows and doors for maximum views, in combination with burglary resistance. The integrated innovative technologies guarantee ultimate performances with regard to wind and water tightness and thermal insulation, meeting with the highest standards. The sliding system MSTH75 offers you all design freedom to create contemporary living spaces, combining ultimate brightness with maximum comfort and security.
Need help?

Search and compare products

Performance

Comfort
Air tightness
-
Acoustics
-
Water tightness
-
Wind load resistance
-
Safety
Burglar resistance
* Note: Performances and properties may be different depending on the profile combinations

Properties

Max. dimensions & weight
Min. height of vent
600 mm
Min. width of vent
2400 mm
Max. height of vent
3000 mm
Max. width of vent
200 kg
Max. weight of vent
450 mm

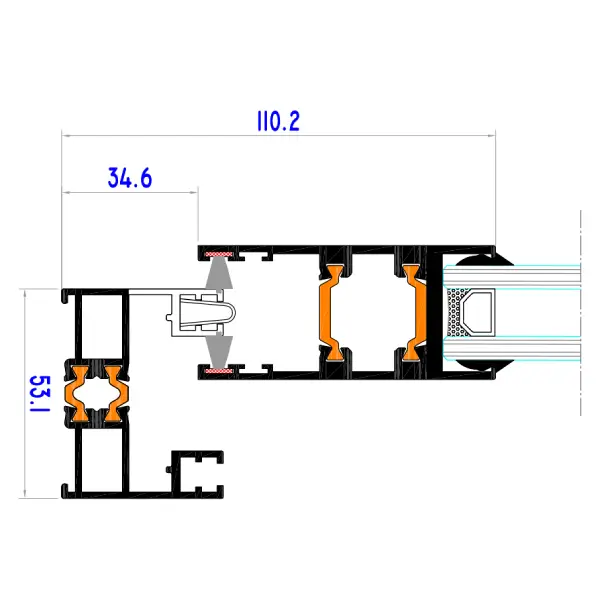

Sightlines
Frame Height
41 mm
Visible Vent Width
75 mm
Visible Meeting Section
155 mm
Vent System Depth
34 mm
Vent System Depth
77 mm
Depth frame 2-rail
53 mm
Depth frame 3-rail
95 mm

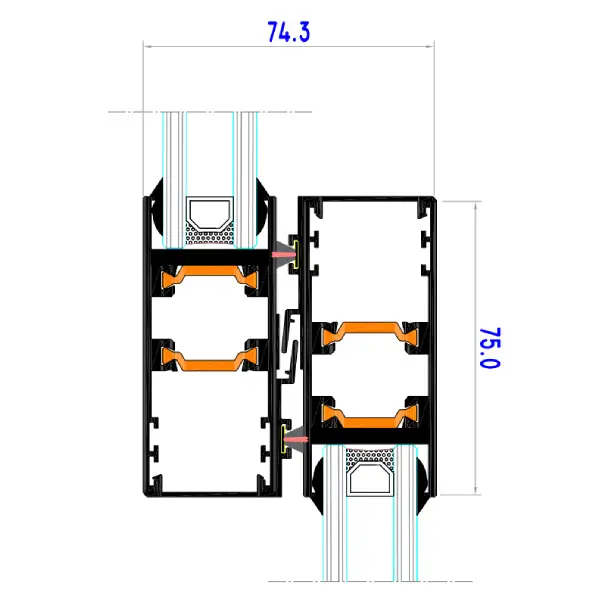

Interlocking View
135 mm
Glazing
Rebate height
17 mm
Min. glass thickness - vent
20 mm
Glazing method
Dry Glazing with EPDM or Natural Silicon
Max. glass thickness - vent
24 mm

In collaboration with our partners, we are committed to developing energy-efficient, sustainably produced products that positively impact homes, buildings, and the people who use them.
