MAGS MSTH35 Slim Thermal Break Sliding System
MAGS MSTH35 is a highly-insulated sliding system that combines elegance with performance and security. This unique sliding system is characterised by thermal break profiles, allowing the integration of large windows and doors for maximum views, in combination with burglary resistance. The integrated innovative technologies guarantee ultimate performances with regard to wind and water tightness and thermal insulation, meeting with the highest standards. The sliding system MSTH35 offers you all design freedom to create contemporary living spaces, combining ultimate brightness with maximum comfort and security.
Performance
Comfort
Air tightness-
Acoustics-
Water tightness-
Wind load resistance-
Safety
Burglar resistance-
* Note: Performances and properties may be different depending on the profile combinations
Properties
Max. dimensions & weight
min height of vent600 mm
min width of vent450 mm
max height of vent3000 mm
max width of vent2400 mm
max weight of vent200 kg

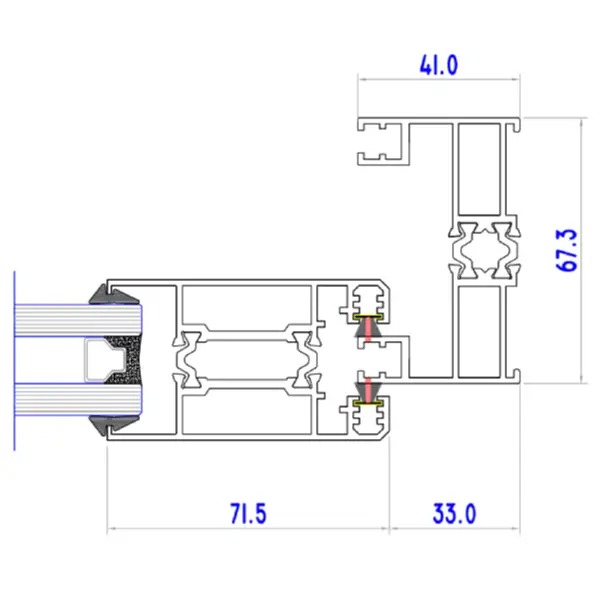

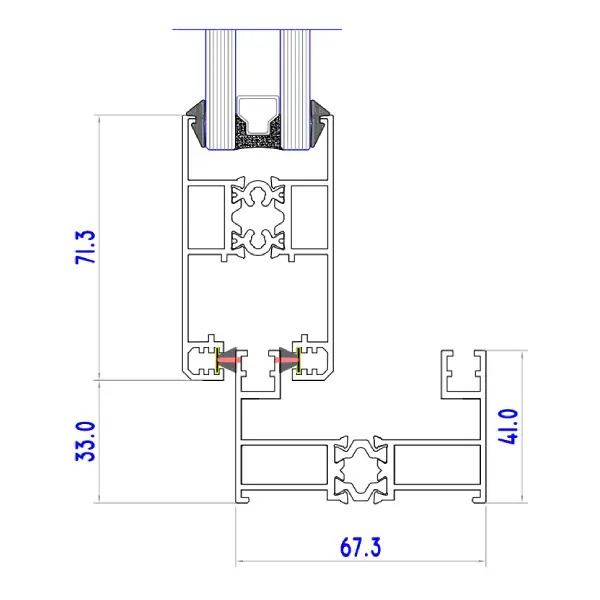

Sightlines
frame height41 mm
visible vent width63 mm
visible meeting section147 mm
vent system depth40 mm

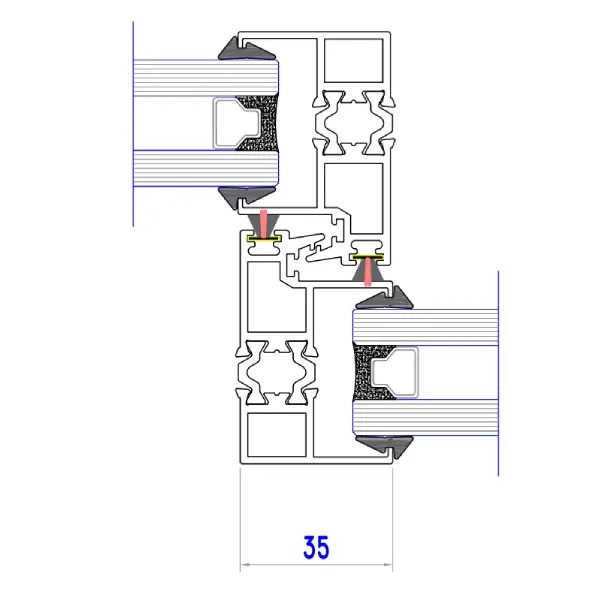

interlocking view35 mm
depth frame2 rail67 mm
depth frame3 rail122 mm, 177 mm
Glazing
rebate height17 mm
min glass thickness20 mm
glazing methodDry Glazing with EPDM or Natural Silicon
max glass thickness27 mm
