MAGS MSTH75 Thermal Break Sliding System

MAGS MSTH75 is a highly-insulated sliding system that combines elegance with performance and security. This unique sliding system is characterised by thermal break profiles, allowing the integration of large windows and doors for maximum views, in combination with burglary resistance. The integrated innovative technologies guarantee ultimate performances with regard to wind and water tightness and thermal insulation, meeting with the highest standards. The sliding system MSTH75 offers you all design freedom to create contemporary living spaces, combining ultimate brightness with maximum comfort and security.

Need help?

Search and compare products

Get Started

Performance

Comfort

Air tightness-
Acoustics-
Water tightness-
Wind load resistance-

Safety

Burglar resistance-

* Note: Performances and properties may be different depending on the profile combinations

Properties

Max. dimensions & weight

min height of vent600 mm
min width of vent450 mm
max height of vent3000 mm
max width of vent2400 mm
max weight of vent200 kg

Sightlines

frame height41 mm
visible vent width75 mm
visible meeting section155 mm
vent system depth34 mm, 77 mm

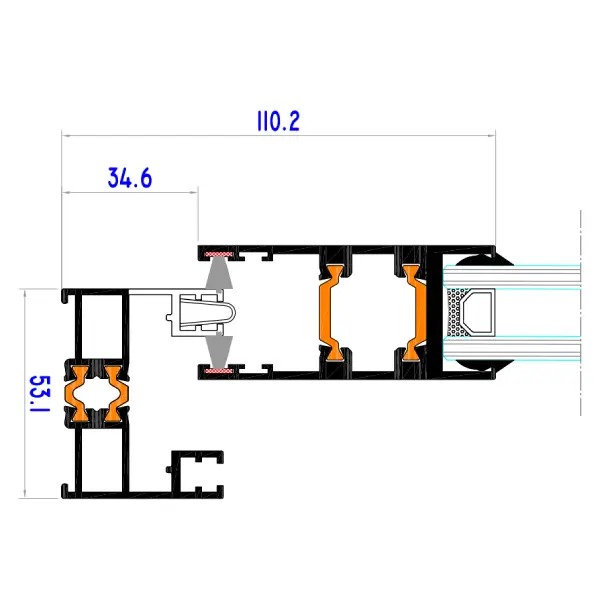

depth frame2 rail53 mm
depth frame3 rail95 mm, 135 mm

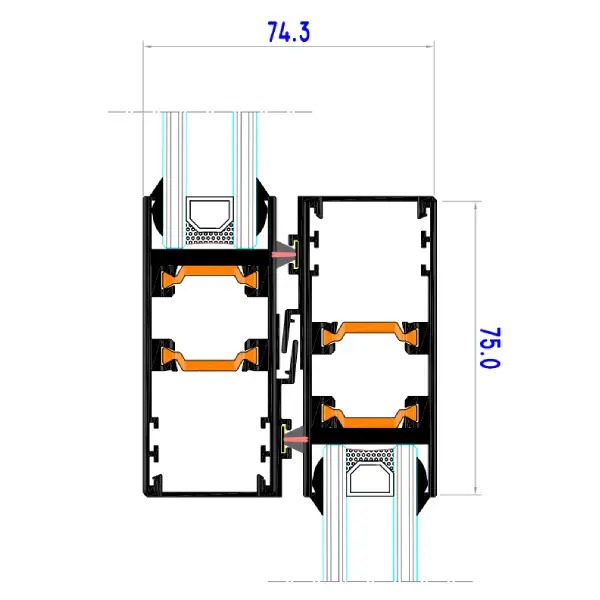

interlocking view75 mm

Glazing

rebate height17 mm
min glass thickness20 mm
glazing methodDry Glazing with EPDM or Natural Silicon
max glass thickness24 mm
